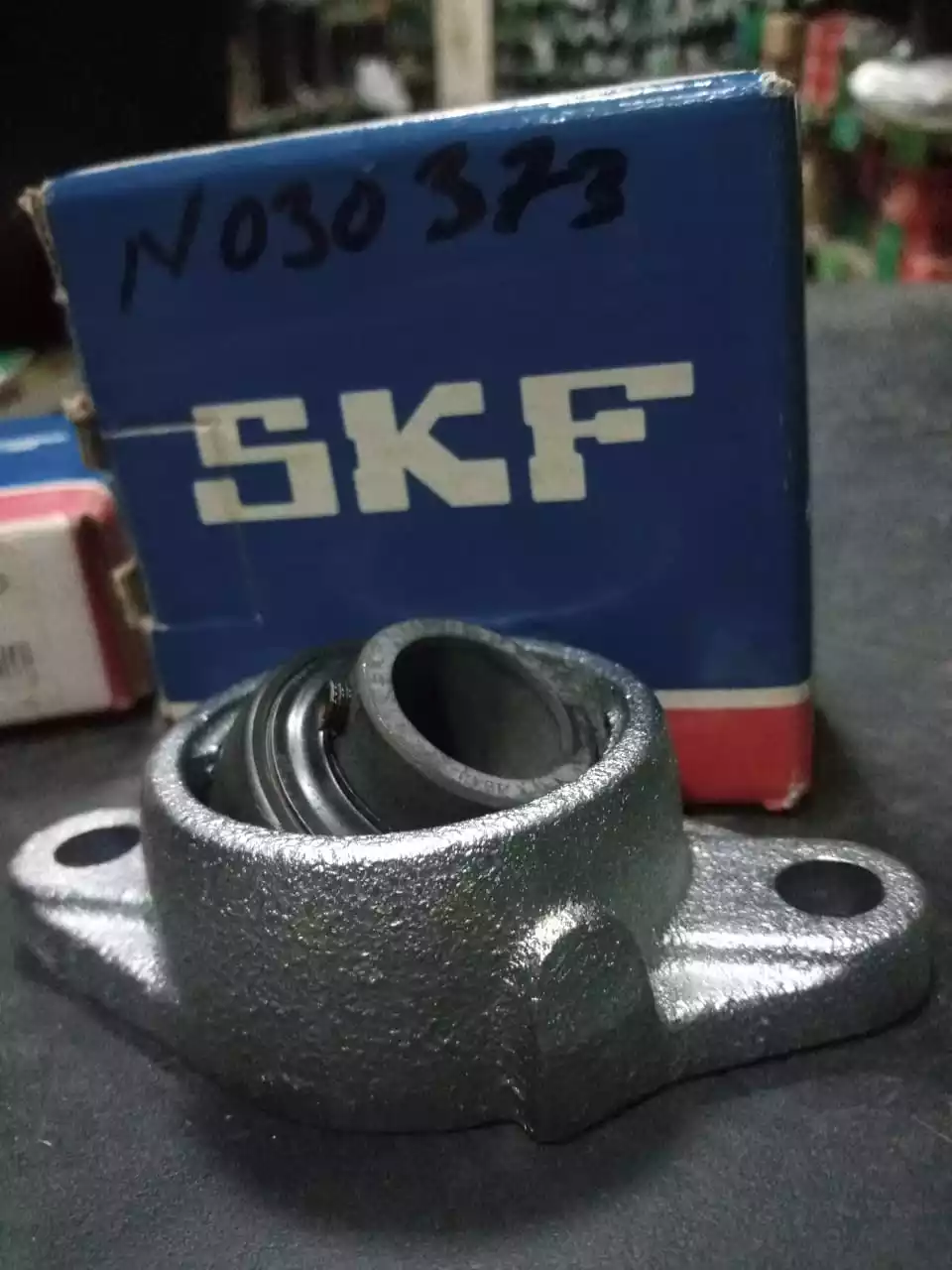

SKF OVAL FLANGED BALL BEARING UNIT

Category:Mechanical, Engineering Components

Sub Category:Industrial plants, machinery & equipment

Available Quantity: 6 each

Bearing Unit FYT-20 TF/VA228 Oval flanged ball bearing unit with set screw locking, high temperature, cast iron housing. These oval flanged ball bearing units are designed for high temperature applications and are compliant with ISO standards. They consist of a high temperature insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement. • Resist high levels of contamination • Designed for high temperatures applications • Accommodate relatively heavy loads • Cost-effective DIMENSIONS: Bearing width, total 31 mm; Centre distance between bolt holes 90 mm; Housing overall width 29.5 mm; Shaft diameter 20 mm; PERFORMANCE: Basic dynamic load rating 12 700 kN; Basic static load rating 6.55 kN; Limiting speed 260 r/min; Maximum operating temperature 350 °C; PROPERTIES: Bore type Cylindrical; Coating Zinc-coated housing and manganese phosphate coated bearing; Fastening bolt hole type Plain; Flanged housing type Oval; Housing type Flanged; Lubricant Solid lubricant; Material, bearing High temperature steel; Material, housing Cast iron; Number of bolt holes for fasteners 2; Relubrication hole Without; Relubrication nipple Without; Retaining feature, inner ring Set screws; Rubber seating ring Without; Sealing type Non-contact; Sealing, bearing Shield and flinger on both sides; Sealing, unit Without;
