Category:Mechanical, Engineering Components
Sub Category:Industrial plants, machinery & equipment
Available Quantity: 1 each

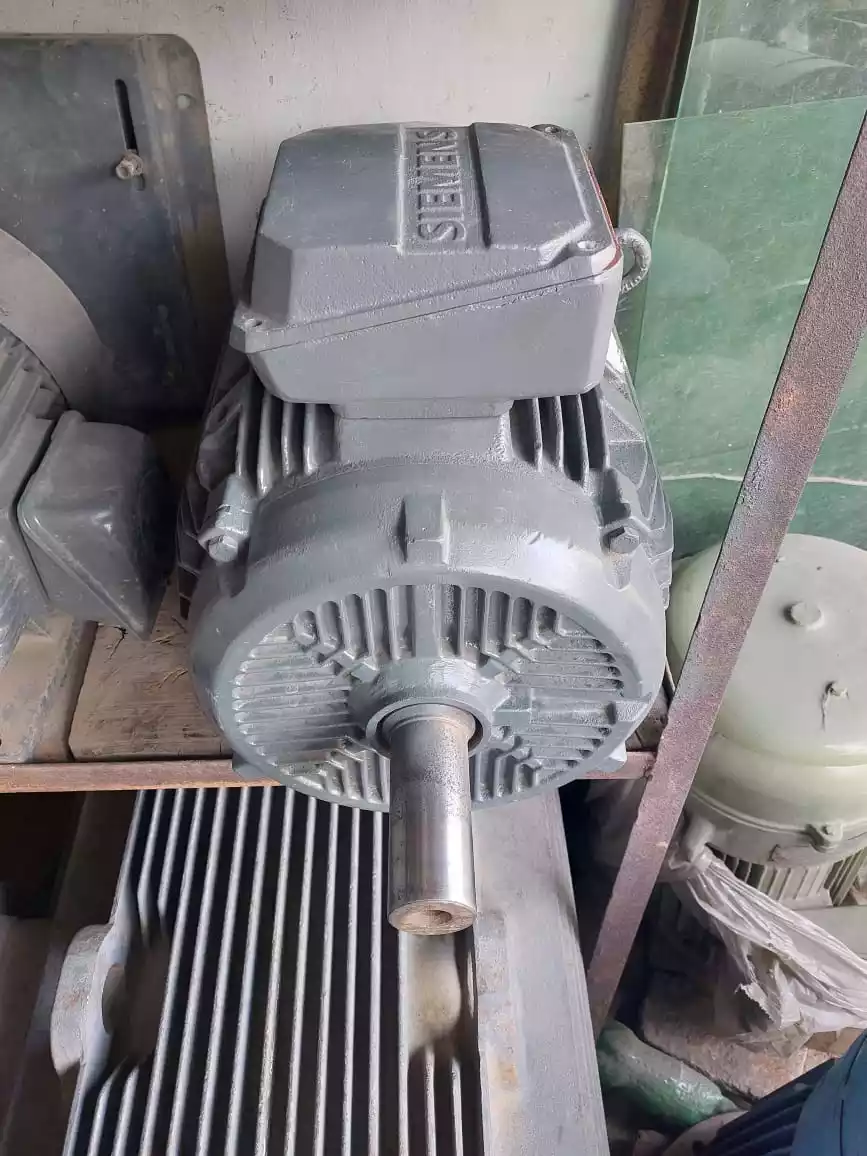

22 kw Kilowatt 30 hp horsepower 1500(1400) rpm THREE-PHASE MOTOR 22KW-30HP 1500 RPM FLANGE B3 IE3 - SIEMENS Three-phase electric motor 22kW (30HP) 400/690Vac 4 Poles 1500 rpm Flange B3 (foot). Energy rating IE3. Manufactured by SIEMENS, SIMOTICS GP series in aluminum. Three-phase electric motor 22kW (30HP) async 400/690Vac 1500 rpm Flange B3 (foot), aluminum housing. Manufactured by SIEMENS, SIMOTICS GP series of aluminum. FEATURES: • Manufacturer: SIEMENS. • Series: SIMOTICS GP • Reference: 1LE1003-1EB4-4AA4. • Engine type: asynchronous squirrel cage. • Voltage: 400/690Vac V.III 50/60Hz. • Power: 22Kw (30 hp). • Current: 41.5/71.88A. • Number of poles: 4. • Rpm: 1500(1400). • Energy rating: IE3 • Degree of protection: IP55. • Fastening type: Flange B3 (foot). • Shaft diameter: .48mm • Housing size: 180L • Color: Grey. • Housing material: Aluminum. • Weight: 132 Kg. • Constructively: B3 foot flange • Speed: 4P - 1500rpm • Power Kw: 22 KW / 30 HP • Material: Aluminum • Type of engine: Three • Energy efficiency: IE3 • Housing size: 180 • Tension: 400/690V • Motor shaft diameter: 48mm
